Belt Pulley Driven Self Priming Pump

P & H Series pumps are interchangeable parts and dimensions with many OEM self-priming non-clog trash pumps (including entire rotating assemblies),it designed for economical & trouble-free operation in handling solids-laden liquids and slurries, it handle up to 76.2mm spherical solids.

Typical mounting configurations are Engine Driven for Skid or Trailer Mounted packages and
Frame Mounted Electric Driven.  Pumps also are available in a variety of different metallurgies.

Haihe Standard Self-Priming Series pumps provide solutions to your solids handling or clear liquid service needs.

Additional Features Include:

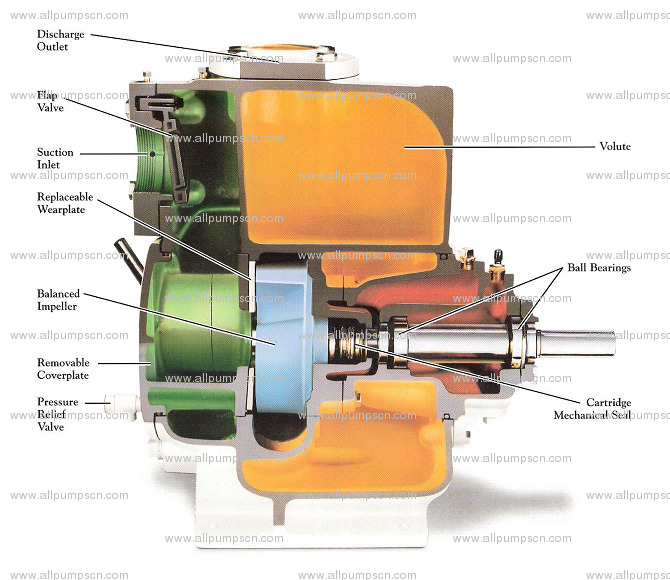

♦  Replaceable Wear Plate
♦  Heavy Duty Suction Flapper
♦  Removable Inspection Cover allows Clean-out, Impeller, Seal and Flapper without disturbing Piping
♦  Semi-Opened Trash Handling Impeller
♦  Pressure Relief Valve
♦  O-Ring Sealed
♦  External, Shimless Impeller/Wear plate Clearance Adjustment
♦  Back Pull-out Cartridge-type Rotating Assembly for Ease of Maintenance
♦  Cartridge Type Mechanical Seal for Ease of Maintenance

Industries Served

a)         ♦  Construction  ♦  Industrial  ♦  Municipal  ♦  Agricultural  ♦  Mining  ♦  Dewatering

b)         ♦  Industrial Waste  ♦  Sewage  ♦  Oil Field  ♦  Petrochemical  ♦  Paper Mills

c)        ♦  Processing

Mounting Configuration
1) Frame Mounted

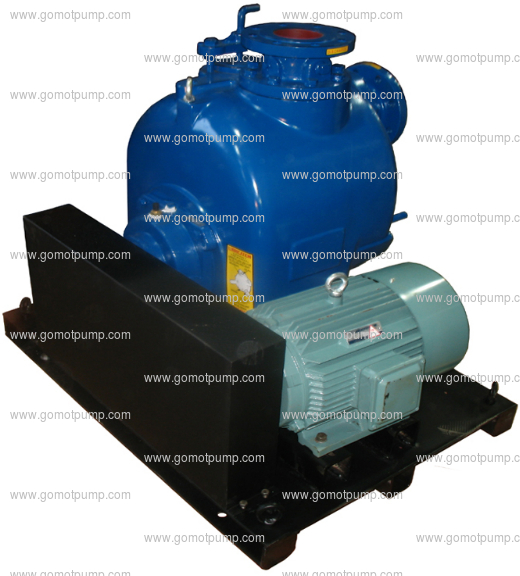

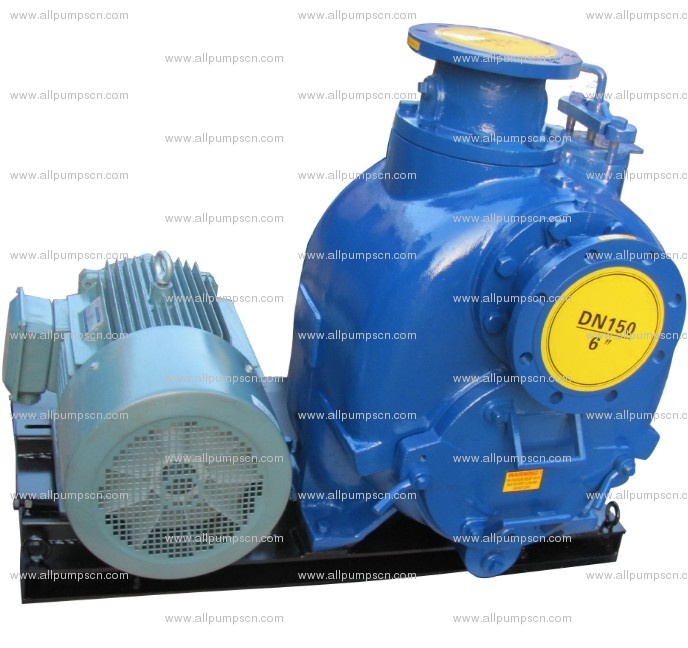

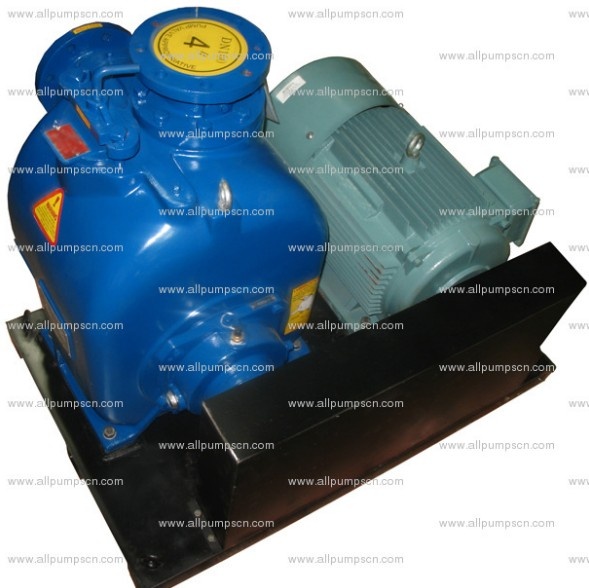

2) Base Mounted Electric Driven
3) Engine Driven SAE Mounted
4) Engine Driven Skid or Trailer Packages
5) Horizontal or Vertical V-Belt Driven

Technical Data
