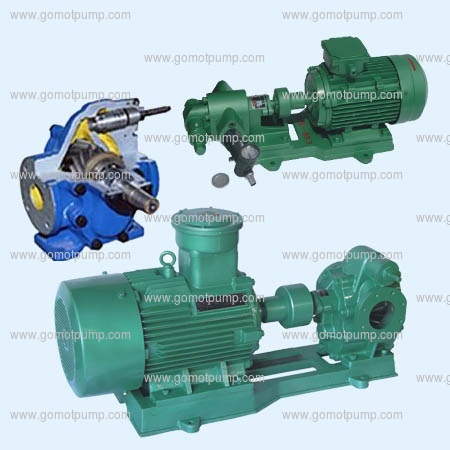

KCB Gear Oil Pumps

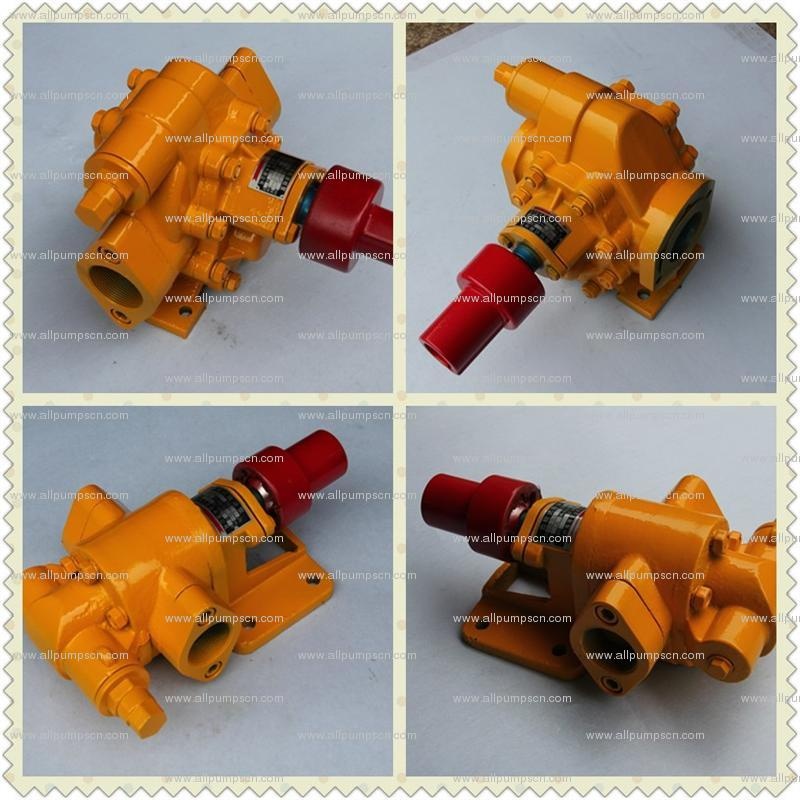

The KCB series gear oil pumps is a horizontal rotary pump, it consists of pump body, gear, bearing seat, safety valve, bearing and seal device etc. Material of gear pump body and bearing seat care cast iron. Gear can be made of bronze or stainless steel material as customer¡¯s requirement.
it¡¯s suitable to transport various lubrication liquid at temperature not higher than 70¡æ, if temperature up to 200¡æ, anti-high temperature material will be matched.
Its viscosity is 5*10-5¡«15*10-3m2/s
Gear pump is not suitable to transport liquid such as corrosive or containing hard grain or fiber, high volatility or low flash point, for example gasoline, benzene. (Pump can transport gasoline if copper gear is adopted. And pump can transport ordinary corrosive liquid if stainless steel material is adopted).
Features
1. Single and compact structure with convenient operation and maintenance
2. Good self-priming pump performance
3. Lubricant of pump can be automatically by transported liquid
4. Flexible couple driven can settle little tolerance for installation

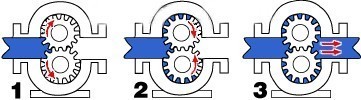

Working Principle
Applications
1) Crude oil, diesel oil and lubricating oil or hydraulic oil etc.
2) Transport gasoline if use brass gear

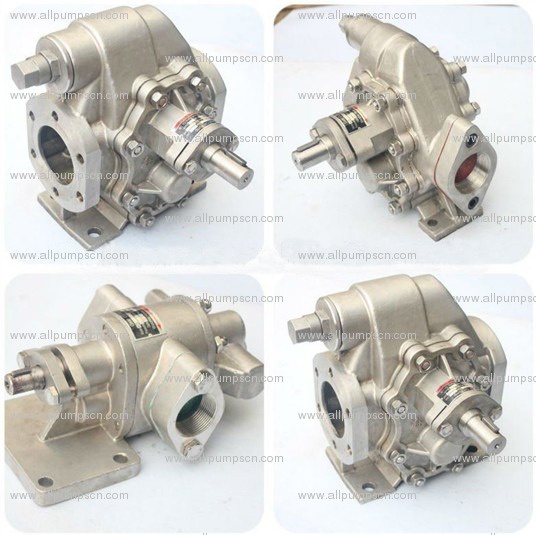

3) Transport ordinary corrosive liquid if pump use stainless steel material
4) Drink, milk, honey, vegetable oil transfer if coupled with stainless steel material
Technical Data
|
Model |
Inlet / Outlet
(mm) |
Flow
(L/min ) |
Pressure
(MPa ) |
Suction Lift
(m ) |
Rotary Speed
(r/min ) |
Motor power
(KW ) |
|
KCB-18.3
2CY-1.1/14.5-2 |
3/4¡¯¡¯ |
18.3 |
1.45 |
5 |
1400 |
1.5 |
|
KCB-33.3
2CY-2/14.5-2 |
3/4¡¯¡¯ |
33.3 |
1.45 |
5 |
1420 |
2.2 |
|
KCB-55
2CY-3.3/3.3-2 |
1¡å |
55 |
0.33 |
5 |
1400 |
1.5 |
|
KCB-83.3
2CY-5/3.3-2 |
1 1/2¡å |
83.3 |
0.33 |
5 |
1420 |
2.2 |
|
KCB-133.3
2CY-8/3.3-2 |
2¡å |
133.3 |
0.33 |
5 |
1450 |
4 |
|
KCB-200
2CY-12/3.3-2 |
2¡å |
200 |
0.33 |
5 |
1450 |
4 |
|
KCB-200
2CY-12/6-2 |
2¡å |
200 |
0.6 |
5 |
1450 |
5.5 |
|
KCB-200
2CY-12/10-2 |
2¡å |
200 |
1.0 |
5 |
1450 |
7.5 |
|
KCB-300
2CY-18/6-2 |
3¡å |
300 |
0.36 |
5 |
1450 |
5.5 |
|
KCB483.3
2CY-29/3.6-2 |
3¡å |
483.3 |
0.36 |
5 |
1450 |
7.5 |
|
KCB483.3
2CY-29/10-2 |
3¡å |
483.3 |
0.36 |
5 |
1450 |
11 |
|
KCB-633
2CY-38/2.8-2 |
4¡å |
633 |
0.28 |
5 |
970 |
11 |
|
KCB-960
2CY-60/3-2 |
4¡å |
960 |
0.3 |
5 |
1500 |
18.5 |
|
KCB-2000
2CY-120/3-2 |
6¡å |
2000 |
0.3 |
5 |
750 |
30 |
|
KCB-2500
2CY-150/3-2 |
6¡å |
2500 |
0.3 |
5 |
750 |
37 | |
