Diesel Engine End Suction Water Pump
IS/IR series single-stage, single-suction end suction centrifugal pump designed by the performance and size according to international standard IS02858, its technique standard is close to the international standard and reach international advanced level.
It has wide use range, there are about 140 kinds of type, but only has four shaft, the same regular of shaft, bearing, impeller can change with each, only four type of pump suspension.
Typical mounting configurations are Engine Driven for Skid or Trailer Mounted packages and
Frame Mounted Electric Driven. Pumps also are available in a variety of different metallurgies.
Drive Variation: Cummins, Deutz, Ricardo, Perkins or Chinese Diesel Engine, Siemens or ABB or China brand electric Motor.
Mounting Configuration
1) Frame Mounted
2) Base Mounted Electric Driven
3) Engine Driven SAE Mounted
4) Engine Driven Skid or Trailer Packages
5) Horizontal or Vertical V-Belt Driven
Applications
1. Agriculture irrigation
2. Fire-fighting system
3. Industrial water supply
4. Drainage
5. Civil engineering
Technical Data
Max.flow: 400m3/h
Ma.head: 125m
Max.temperature: IS¡Ü80¡æ, IR¡Ü120¡æ
Allowed suction pipeline pressure is 0.3Mpa, the highest using pressure: 1.06Mpa
Standard Material
Casing: Cast iron and Ductile iron, stainless steel
Shaft: Carbon steel or Stainless steel
Impeller: Cast iron, ductile iron, Stainless steel, bronze
Shaft seal: Mechanical seal or Gland packing seal

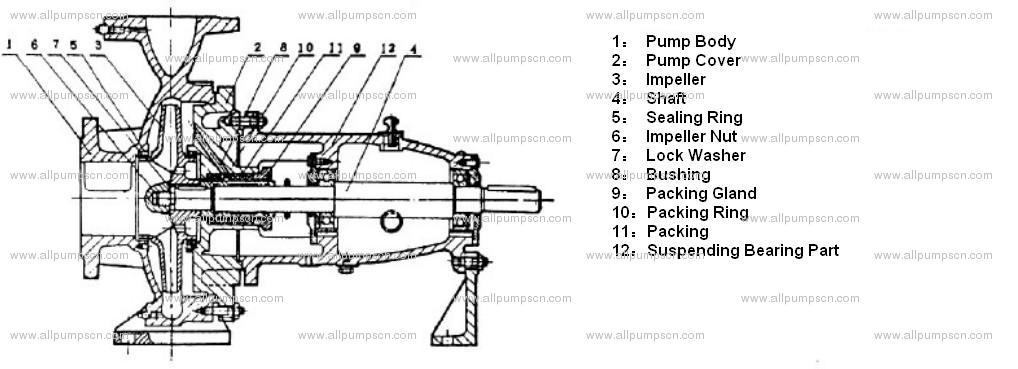

Structure Drawing
 |
