Water Cooled Deutz Diesel Engine

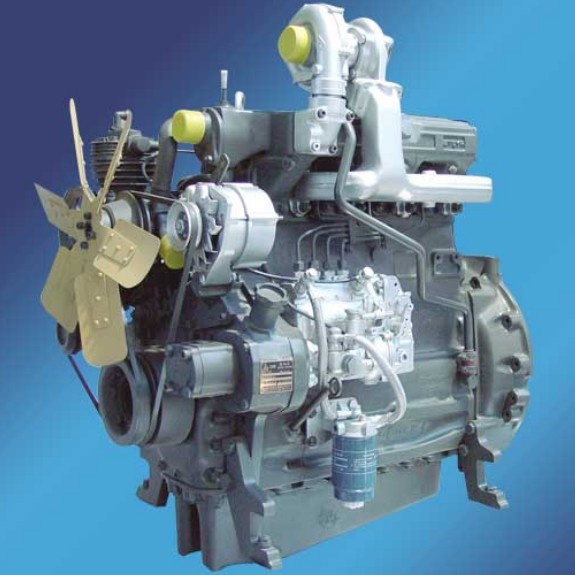

Deutz Diesel Engine 226B series is produced by the Joint Venture Co. between Weichai and German Deutz, they supply full range of products with high power, torque, high reliability, low fuel consumption, low emission, low noise, adaptation sex strong characteristic
Deutz 226B series diesel engine is the engine made in the joint venture between China and German Deutz. Deutz 226B series diesel engine is widely using in Loader, Bulldozer, Roller, Excavator and Concrete Mud Pump industries, to avoid the early wear phenomenon, adopts the air filter has exhaust air injection device, improved 20% performance of air filter.
Because the advantages of low fuel consumption, low noise, low emission, long running life, Deutz 226B perfect power units for the new generation of all kinds of Loader, Bulldozer, Roller, Excavator and concrete Mud Pump.
Deutz 226B Series Diesel Engine Specification
|
Model |
D226B-3D,TD226B-3D,TD226B-4D,TD226B-6D |
|
Cooing Method |
Forced water cooling |
|
Rotating speed |
1500/1800rpm |
|
Governor system |
electrical or mechanical governor |
|
Aspiration mode |
natural aspirated or turbocharged |
|
Starting method |
12/24V DC electric starting |
|
Stroke |
4 stroke |
1, Main specification
a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers¡¯ Special Requirements)
b,12V/24V DC start motor and storage battery
c,Brushless, Self-excited, IP21-23, insulation class H alternator
d, 40¡ãC radiator as standard, 50¡ãC is optional
e,Key start panel control system as standard, digital auto-start panel is optional
f,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
2, Data of Generator Set
|
Prime Power |
25kw-120kw |
Standby Power |
27.5kw-132kw |
|
Rated Speed |
1500rpm |
Output Frequency |
50hz/60hz |
|
Phase |
3 |
Rated Voltage |
400v |
|
Engine Brand |
Weichai |
Alternator Brand |
Stamford |
|
|
|
Fuel Consumption |

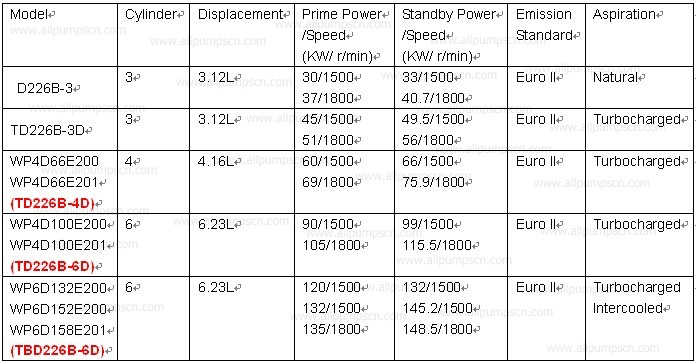

3, Engine Parameter Table
4, Alternator Specification
|
Alternator Brand |
Stamford,Engga,Mecc-alte,Marathon ... |
|
Exciter Type |
Brushless, Self-excited |
|
Rated Speed |
1500/1800rpm |
|
Rated Frequency |
50/60hz |
|
Phase |
three or single |
|
Rated Voltage |
400V (Available with customer requirements) |
|
Power |
0.8 |
|
Voltage Adjust Range |
¡Ý5% |
|
Protection Grade |
IP21-23 |
|
Insulation Grade |
H |
5, Digital Control Panel
Controller Brand: Smartgen, Deepsea, ComAp
Control Panel: English interface, LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currency, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
6. Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
7. Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets. |
