Cummins electric governor 4-stroke engine diesel is a Joint-venture brand, headquarter is located in Columbus, Indiana, USA. Cooperation with China factory in Hubei and Chongqing. Dongfeng Cummins power range: 24kw to 220kw, Chongqing Cummins power range: 205kw to 1384kw. Our company is an approved Cummins OEM partner. So we can provide genuine Cummins Diesel Water Cooled Engine & Cummins genset with very competitive price and comprehensive Super Silent Diesel Generator With its technical support.
Matured technology, slight volume, large power and low noise.
Good smooth running performance.
Integral module structure design, which makes the total amount of spare parts 25% less than other brand.
Global warranty service: with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.

Cummins Diesel Engine technology parameters

1) Power range: from 24kW (30kVA) to 1,000 kW (1,250 kVA)

2) Engine model: 4B3.9-G1 4BT3.9-G1 4BTA3.9-G2-G1 6BT5.9 6BTA5.9-G2-G2 6BTAA5.9 6CTA8.3-G2 6CTAA8.3 -G2, 6LTAA8.9-G2, NTA855-G, KTA19-G, KTAA19-G, KT38-G, KTA38-G, and KTA50-G

3) Water-cooled

4) The unit configuration standards

      a) Engine: Cummins series diesel engine

      b) Engine type: Water-cooled, inline, four-stroke, wet cylinder liner, direct injection

5) Start system: DC motor

6) Cooling system: cooling water tank to adapt to the ambient temperature of 40 ° C heat demand

7) Filter: oil, diesel oil and air filter

8) Accessories: exhaust elbow, bellows, muffler

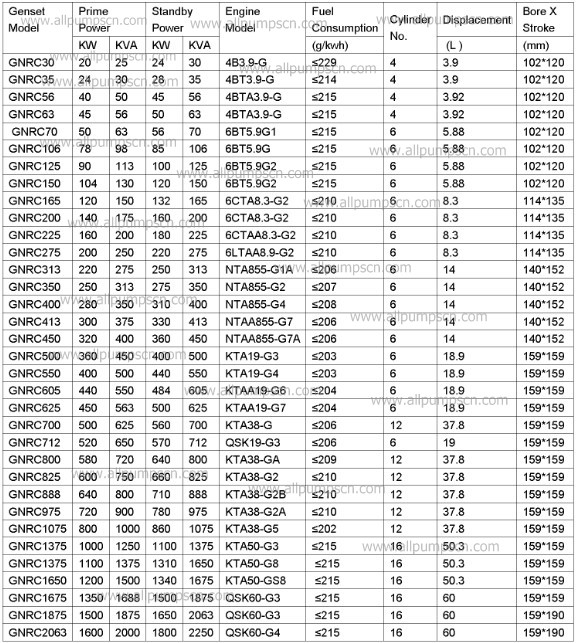

Parameter Table:

Genset Features

1. Genuine Commins industrial diesel engine

2. Radiator 40°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9. Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler

14.   Comply with ISO and CE standards

15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Engine Features

1. Genuine Commins  industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Alternator Features

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Super Soundproof/Silent Box

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA

Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
