1) Chemical Industry
2) Pharmaceuticals industry, medicine remedy
3) Electric plate, Electric appliance
4) Photograph processing
5) Metal industry, Mineral industry
6) Food industry, Water treatment
7) Silver recycle, water manufacture, laboratory-ice making machine, drinking machine
8) Living boiler, heating exchange machine, solar energy system, dyeing, laser system
9) Water spouting pool, rearing pond fish far etc.
Techanical Data
1. Flow Range: 8 ~ 330L/min
2. HeadRange: 1 ~ 18m
3. Main materials: GFRPP
4. Power range: 3 ~ 2200W
5. Liquid temperature range: 0 ~ 80 degree

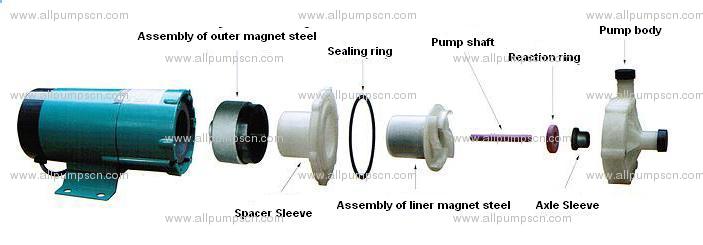

Structure Drawing

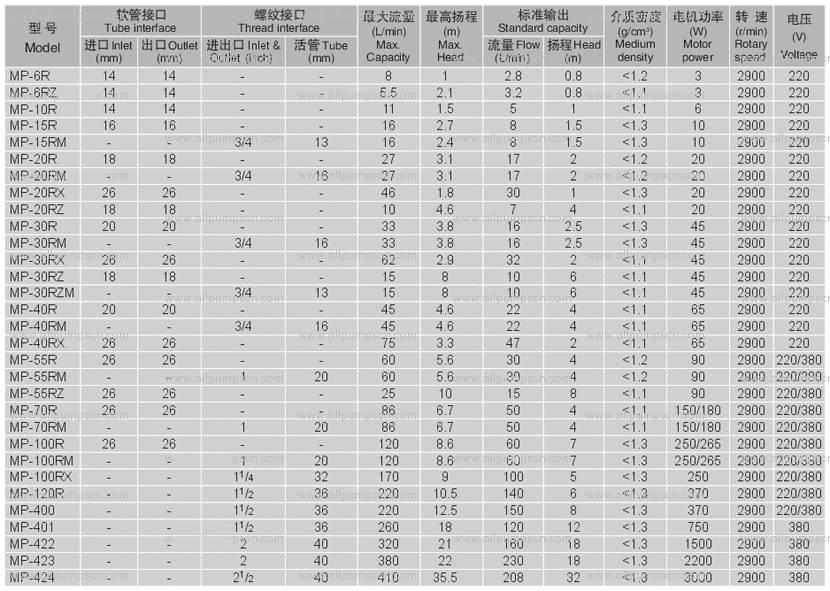

Parameter Table
