TPOW Split Case Pumps

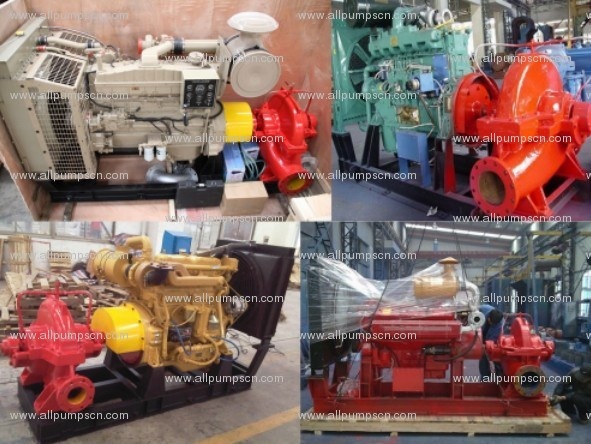

All Pumps Machinery Company Limited TPOW Horizontal Split Case Diesel Centrifugal Water Pump is an axial opening of single-stage double-suction volute centrifugal pump, horizontal installation, driver (electric motor or the internal combustion engine) can be set in the left or right side of the pump (that is, export-oriented, driving counterclockwise on the left, on the right side for clockwise rotation).
Applications
1: Urban water supply and drainage
2: central heating system water supply and sewerage
3: iron and steel metallurgy enterprises
4: paper mills, petrochemical refineries, oil fields
5: construction of thermal power plants and power stations
6: airports, chemical factories
7: textile mills, sugar factories
8: chemical plants, power stations
9: mines, farmland drainage irrigation and hydraulic engineering
Technical Data
1. Flow Rate (Q): 82~16236m3/h
2. Rotary speed (n): 490¡«2900r/min
3. Total Lift Head (H): 6~180m
4. Inlet diameter: 125¡«1200mm
5. Outlet diameter: 80¡«1000mm.
6. Power: 5.5¡«1600kw
7. Voltage: 380,6K/10KV
8. Max. Working pressure: 2.5MPa
9. Temperature range: maximum temperature ¡Ü 100 ¡ã c of the liquid, a special configuration of up to 150 ¡ã c, ambient temperature ¡Ü 40 ¡ã c |
