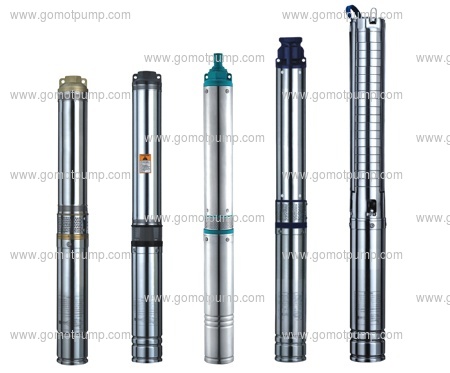

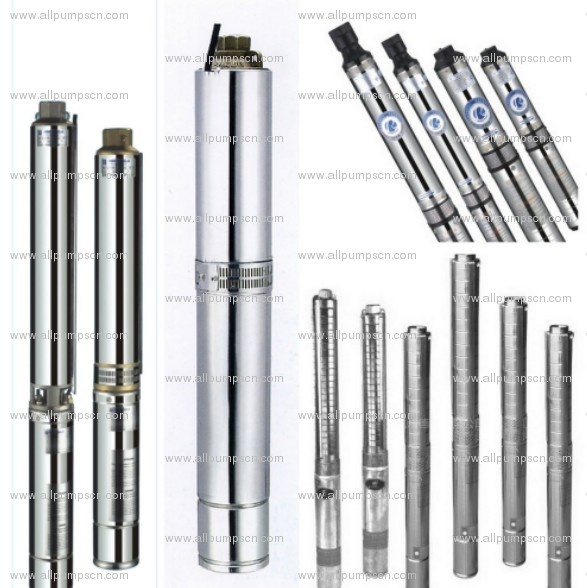

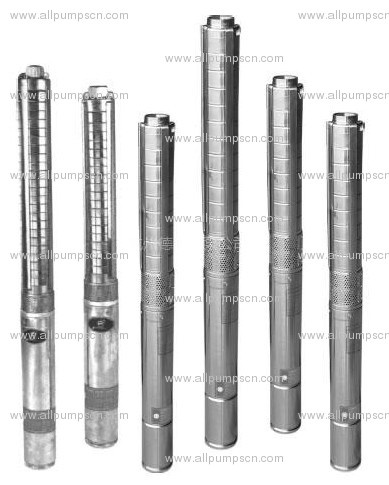

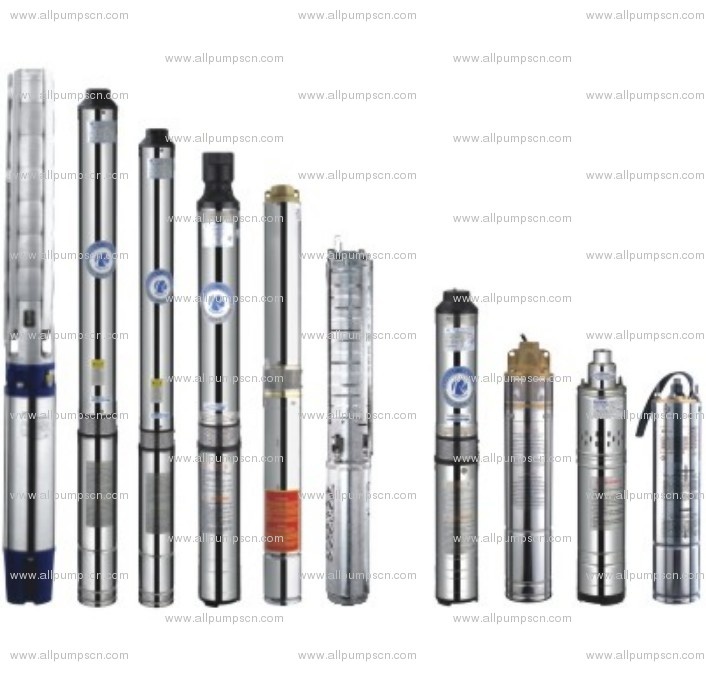

QJD Deep Well Pump

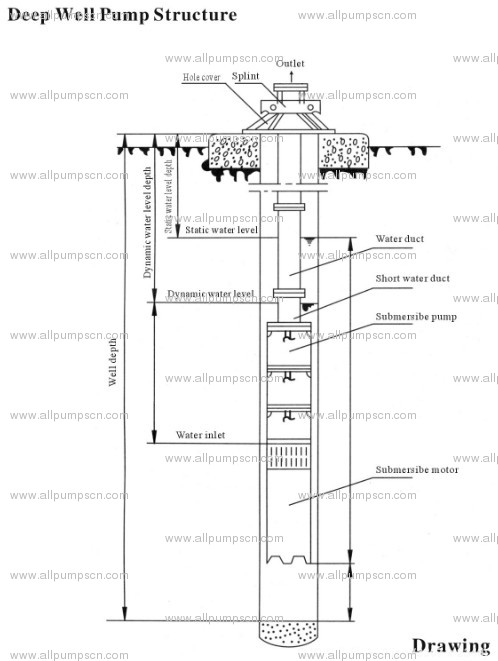

QJD type deep well pump composed with motor and pump body directly into the joint integrated water machines work, our company produced deep well pump is pump body and motor together water tool, small size, light weight, easy maintenance, without specialized pumping station.
Features
1. Simple structure, saving raw materials
2. Motor, pump stayed together, diving water to run, safe and reliable
3. Easy installation and maintenance, small footprint, without construction of the pumping station
4. Of well pipes, water pipes without special requirements(i.e.: steel tube wells, gray tube used respectively; under pressure permit, steel pipe, Hose, plastic tubes, etc. can be used for water pipes Yang)
Applications
1) Extraction of groundwater from the deep well
2) Rivers, reservoirs, canals and other water works
3) For farmland¡¢irrigation and mountain plateau drinking water
4) For cities, factories, railways, mines and building site drainage
Technical Data
|
Model |
Head
(m) |
Capacity
(m3/h) |
Power
(Kw) |
Voltage
(v) |
Frequency
(Hz) |
inlet
(mm) |
Speed
(r/min) |
Impeller
Stage No.
(Pcs) |
|
QJD4-40/5-0.55 |
40 |
2-4 |
0.50 |
220 |
50 |
25 |
2860 |
5 |
|
QJD5-50/6-0.75 |
50 |
2.5-5 |
0.75 |
220 |
50 |
25 |
2860 |
6 |
|
QJD6-60/8-1.1 |
60 |
3-6 |
1.1 |
220 |
50 |
25 |
2860 |
8 |
|
QJ4-40/5-0.50 |
40 |
2-4 |
0.50 |
380 |
50 |
25 |
2860 |
5 |
|
QJ5-50/6-0.75 |
50 |
2.5-5 |
0.75 |
380 |
50 |
25 |
2860 |
6 |
|
QJ6-60/8-1.1 |
60 |
3-6 |
1.1 |
380 |
50 |
25 |
2860 |
8 |
|
QJ4.5-82/10-1.5 |
82 |
4.5 |
1.5 |
380 |
50 |
25 |
2860 |
10 |
|
QJ5-92/12-1.5 |
92 |
5 |
1.5 |
380 |
50 |
25 |
2860 |
12 |
|
