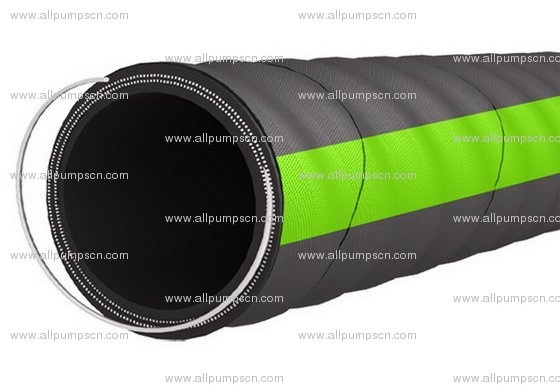

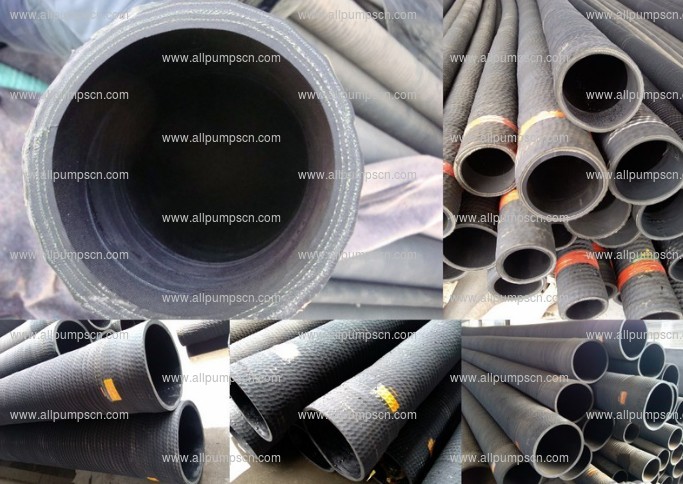

Abrasion Resistant Rubber Suction Hose
Tube: black NBR/SBR material.

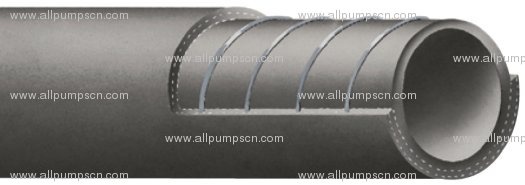

Reinforcement: by 3-8 layers Nylon cord ply with 1 helix steel wire embedded.
Cover: cloth surface with water and weather resistant.good anti-abrasion character.
Applications: for water suction and delivery service in industry or agricultural irrigation
Temperature: -30 celsius degree + 80 celsius degree
Packing: Seaworthy trans. Film
Parameter Table£º
|
I.D. |
Layers |
O.D.(ref.) |
W.P. |
Kg |
Maximum |
|
mm |
inch |
(mm) |
(Bar) |
kg/m |
lb/ft |
Length(m) |
|
25 |
1 |
2 |
47 |
15 |
0.99 |
0.66 |
10 |
|
32 |
11/4 |
2 |
55 |
10 |
1.53 |
1.03 |
10 |
|
38 |
11/4 |
2 |
61 |
10 |
1.59 |
1.07 |
10 |
|
38 |
11/2 |
3 |
63 |
10 |
1.74 |
1.17 |
10 |
|
51 |
2 |
2 |
74 |
7 |
2.00 |
1.34 |
10 |
|
51 |
2 |
3 |
76 |
7 |
2.20 |
1.48 |
10 |
|
65 |
22/1 |
3 |
89 |
7 |
2.70 |
1.81 |
10 |
|
76 |
3 |
3 |
101 |
6 |
3.43 |
2.30 |
10 |
|
76 |
3 |
4 |
103 |
7 |
3.74 |
2.51 |
10 |
|
89 |
31/2 |
3 |
114 |
6 |
4.01 |
2.69 |
10 |
|
89 |
31/2 |
4 |
116 |
7 |
4.39 |
2.95 |
10 |
|
102 |
4 |
3 |
127 |
5 |
4.57 |
3.07 |
10 |
|
102 |
4 |
4 |
129 |
7 |
4.98 |
3.34 |
10 |
|
125 |
5 |
3 |
154 |
5 |
6.83 |
4.58 |
10 |
|
125 |
5 |
4 |
156 |
6 |
7.30 |
4.90 |
10 |
|
125 |
5 |
5 |
158 |
7 |
7.85 |
5.27 |
10 |
|
152 |
6 |
4 |
179 |
3 |
8.06 |
5.41 |
10 |
|
152 |
6 |
5 |
183 |
5 |
9.28 |
6.23 |
10 |
|
203 |
8 |
5 |
234 |
3 |
12.11 |
8.13 |
8 |
|
203 |
8 |
6 |
240 |
5 |
12.90 |
8.66 |
8 |
|
254 |
10 |
6 |
292 |
3 |
18.10 |
12.15 |
6 |
|
254 |
10 |
8 |
296 |
5 |
19.99 |
13.41 |
6 | |
