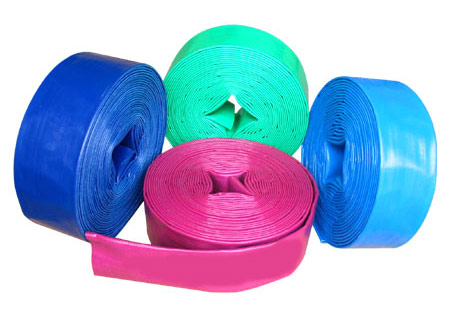

PVC Lay Flat Hose
Features:
1).Non-Water absorbing and mildew proof hose with synthetic fiber reinforcement in middle
2).Resistant to abrasion,corrosion and weather
3).Flat roll and easy to take,handle and store
Applications:
Ideally suited for agricultural,mining,greenhouse, farmland construction site and general purpose
Parameter Table:
|
Size |
Diameter |
2Bar |
3Bar |
4Bar |
6Bar |
8Bar |
10Bar |
|
Inch |
(mm) |
Kg/m |
Kg/m |
Kg/m |
Kg/m |
Kg/m |
Kg/m |
|
1" |
25.4±1.3 |
0.12 |
0.13 |
0.14 |
0.155 |
0.17 |
0.185 |
|
1-1/4" |
31.8±1.3 |
0.14 |
0.15 |
0.175 |
0.195 |
0.21 |
0.23 |
|
1-1/2" |
38.1±1.5 |
0.18 |
0.20 |
0.24 |
0.27 |
0.30 |
0.32 |
|
2" |
50.3±2.0 |
0.24 |
0.30 |
0.35 |
0.375 |
0.39 |
0.42 |
|
2-1/2" |
63.5±2.3 |
0.32 |
0.38 |
0.45 |
0.48 |
0.52 |
0.55 |
|
3" |
76.2±2.3 |
0.38 |
0.47 |
0.57 |
0.63 |
0.69 |
|
|
4" |
101.6±2.5 |
0.52 |
0.58 |
0.72 |
0.80 |
0.90 |
|
|
5" |
121.0±2.8 |
0.75 |
0.85 |
0.95 |
1.10 |
1.20 |
|
|
6" |
152.4±3.0 |
0.90 |
1.05 |
1.20 |
1.40 |
2.10 |
|
|
8" |
203.2±3.5 |
1.45 |
1.55 |
1.70 |
1.90 |
2.60 |
|
|
10" |
254.1±4.0 |
2.30 |
2.50 |
2.75 |
|
|
|
|
12" |
304.8±4.5 |
3.0 |
3.60 |
4.0 |
|
|
|
|
